ACL Main Bearing Set For Toyota GR Yaris G16E-GTS - STD

Specifications for STD size only

Sizes	STD, .025, .25
Oil Clearance
Half Type	Upper & lower
Material	F780
Min. Std Shaft Size	55,988 mm / 2.2042 in
Max. Std Shaft Size	56 mm / 2.2047 in
Min. Std Tunnel Size	60 mm / 2.3622 in
Max. Std Tunnel Size	60,016 mm / 2.3628 in
Max Wall at Crown	2,002 mm / 0.0788 in
Max Overall Length	17,25 mm / 0.6791 in
Notes
Diagrams	8533H-L (1,2,3,4) 8533H-U (1,2,3,4)

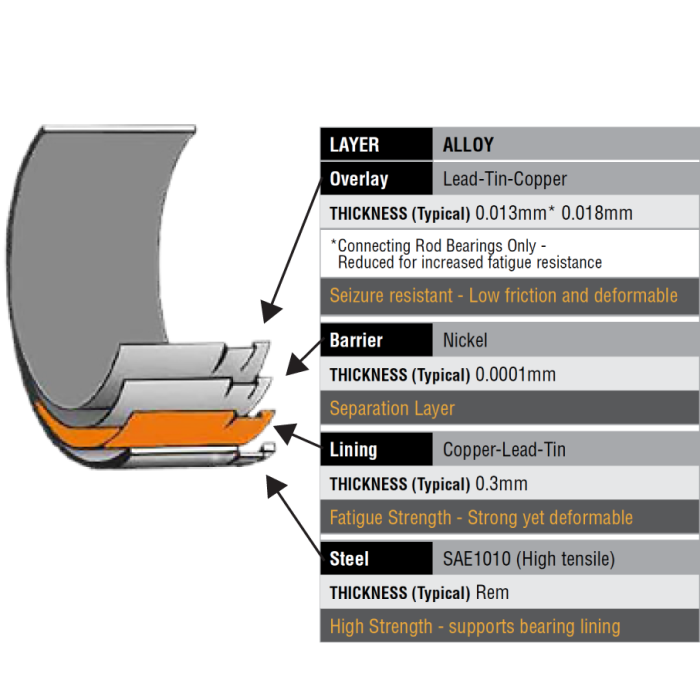

HIGH STRENGTH OVERLAY PLATE with reduced thickness for improved fatigue properties

HARDENED STEEL BACKS on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.

INCREASED CRUSH for improved bearing retention

ELIMINATION OF FLASH PLATING on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.

INCREASED ECCENTRICITY to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

3/4 GROOVED MAIN BEARINGS to optimize bearing load carrying surface area and oil flow to the conrod bearings.

TIGHT CONSISTENT WALL TOLERANCES to help you maintain consistent clearances.

ENLARGED ID CHAMFERS on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Applications:

Toyota Yaris GR G16E-GTS
