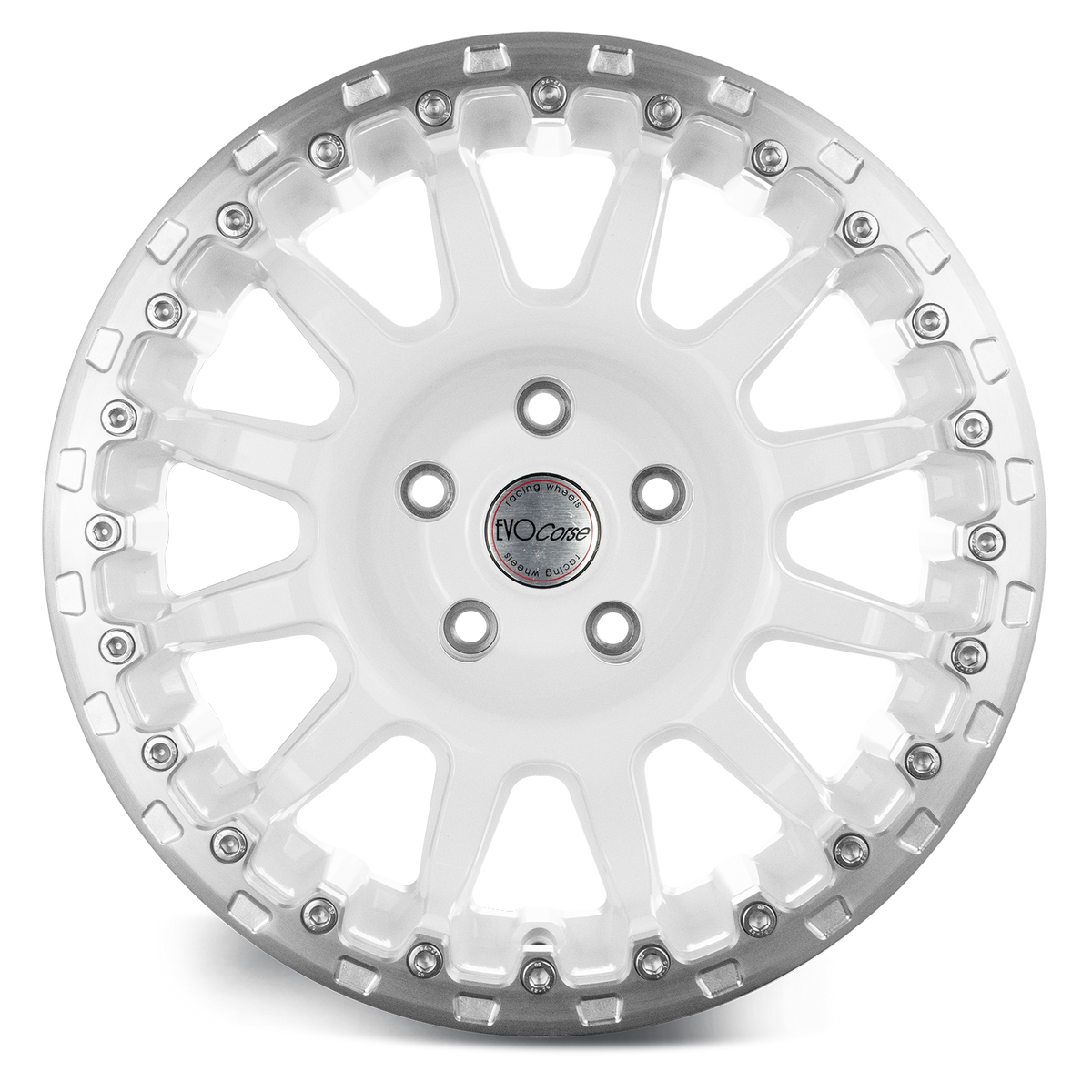

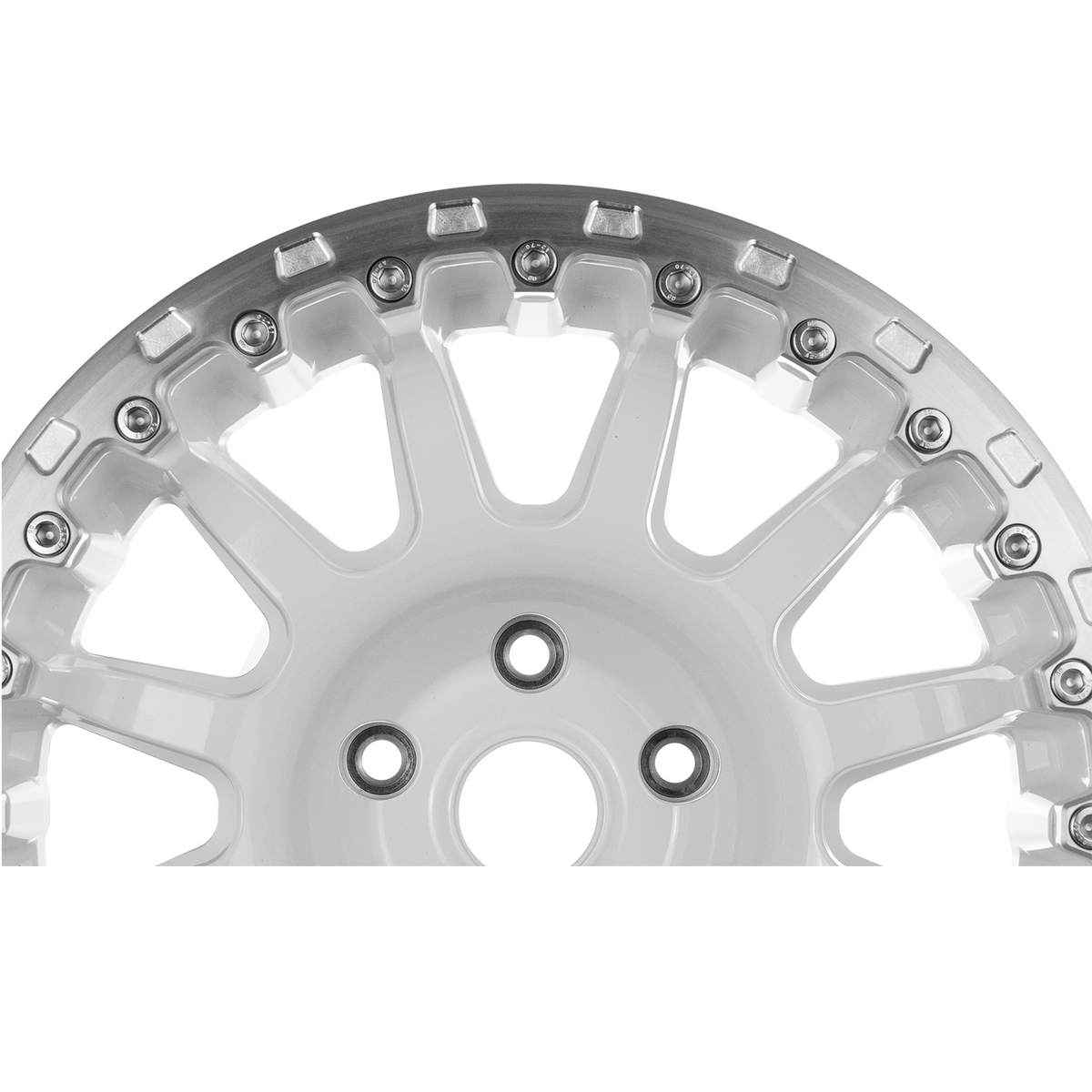

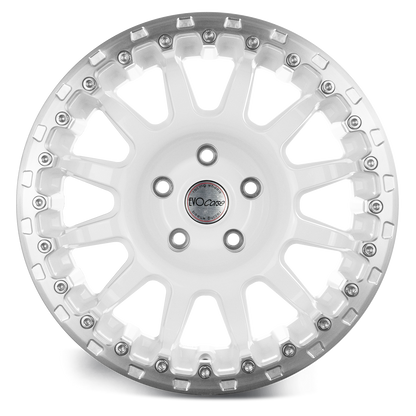

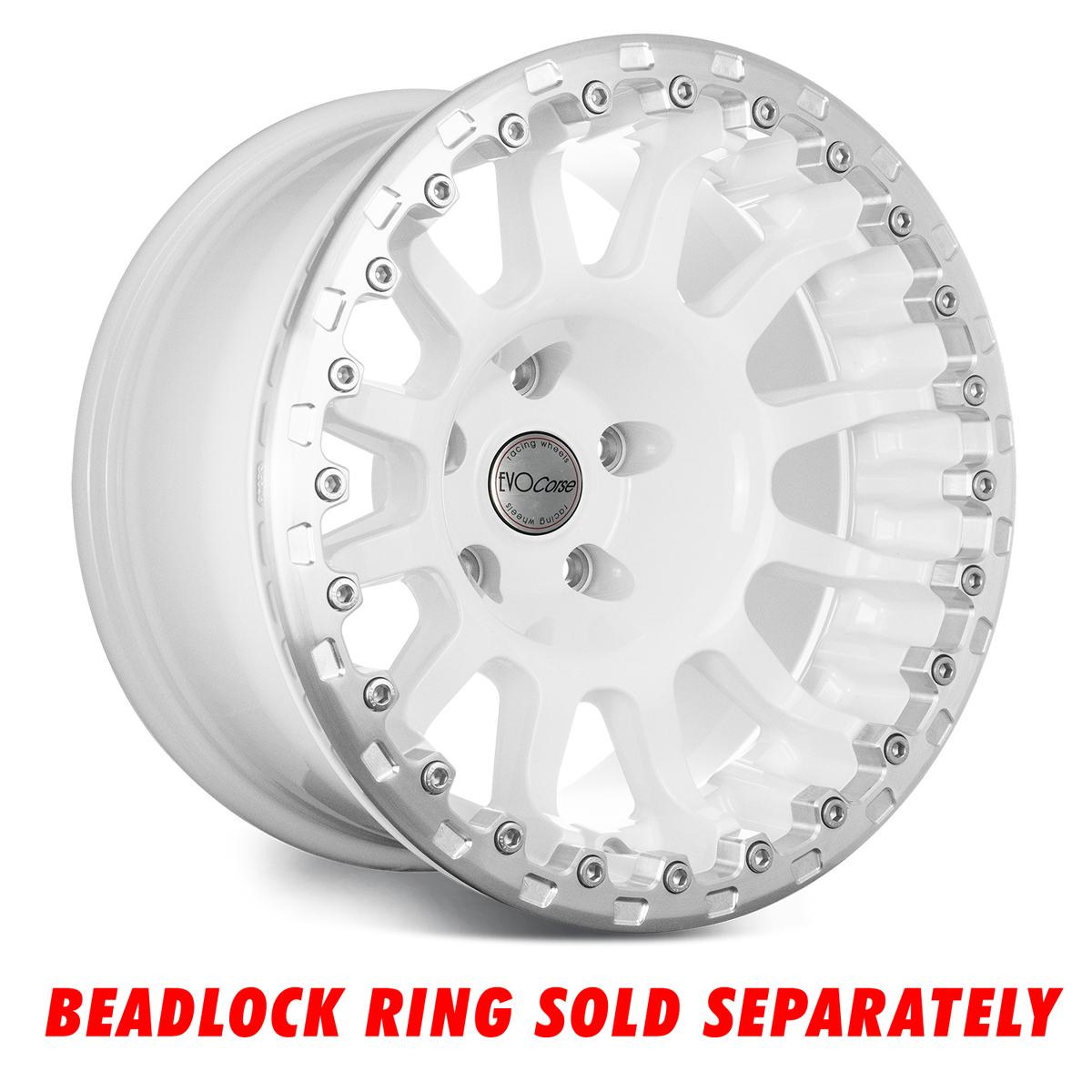

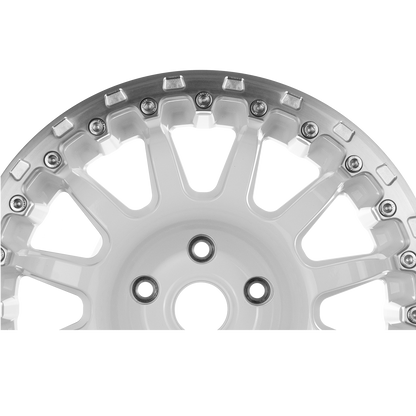

Evo Corse Atlas BL 17" Alloy Wheel - 8x17

Atlas BL is the EVO Corse 17″ alloy wheel for off-road use, featuring threaded holes on its outer edge. This provision allows for a modular configuration, choosing between a beadlock ring and a protection ring according to the intended use.

In the beadlock-ring configuration, Atlas BL is available in 9×17″. When a beadlock ring is not required, the 8×17″ version uses a protection ring that covers the threaded holes and helps safeguard the wheel’s outer edge. The protection ring can also be customised in colour.

Weight: 14.00 kg per wheel (varies slightly by fitment).

Size: 8J x 17". Choose your PCD, offset (ET) and centre bore, then your colour. Price is per wheel. Wheel nuts/bolts and centre caps are not included. Made in Italy by Evo Corse.

Beadlock or protection-ring configuration

The threaded holes on the outer edge make Atlas BL configurable according to its intended use. The beadlock ring is intended for the 9×17″ size, while the protection ring is intended for the 8×17″ size.

The protection ring covers the threaded holes and helps protect the wheel’s outer edge. It can be customised in colour to create a coordinated or contrasting configuration with the wheel.

Materials, finishes and configurations

Atlas BL is made from A356 aluminium alloy.

Standard colours are white and matt black. Silver, gold, anthracite, glossy black, matt bronze and glossy bronze are also available.

Applications and compatibility check

Atlas BL must be configured according to the specifications of each individual vehicle and its intended use. Before ordering, it is necessary to verify the vehicle year and version, wheel size, PCD, ET, centre-bore diameter, available brake clearance, tyre, beadlock or protection-ring configuration, and applicable approval requirements.

The sizes, weights and configurations shown may vary according to the specific wheel specification.

Ford: Ranger, Transit Custom, Bronco

Jeep: Wrangler

Land Rover: Defender 90 – 110

Mercedes: Sprinter / Sprinter 4×4

Nissan: Patrol

Toyota: Tundra, Land Cruiser, Prado, Hilux

Volkswagen: Transporter / Caravelle, Multivan, Amarok

Available fitments

Not sure which fitment suits your car? Contact us with your make, model and year and we'll confirm before you order.
