Evo Corse Lion V39 15" Alloy Wheel - 7x15
Evo Corse
Evo Corse Lion V39 15" Alloy Wheel - 7x15
Evo Corse Lion V39 15" Alloy Wheel - 7x15
SKU:SE5410040011
Made to Order – Approx. 4–6 Weeks
Couldn't load pickup availability

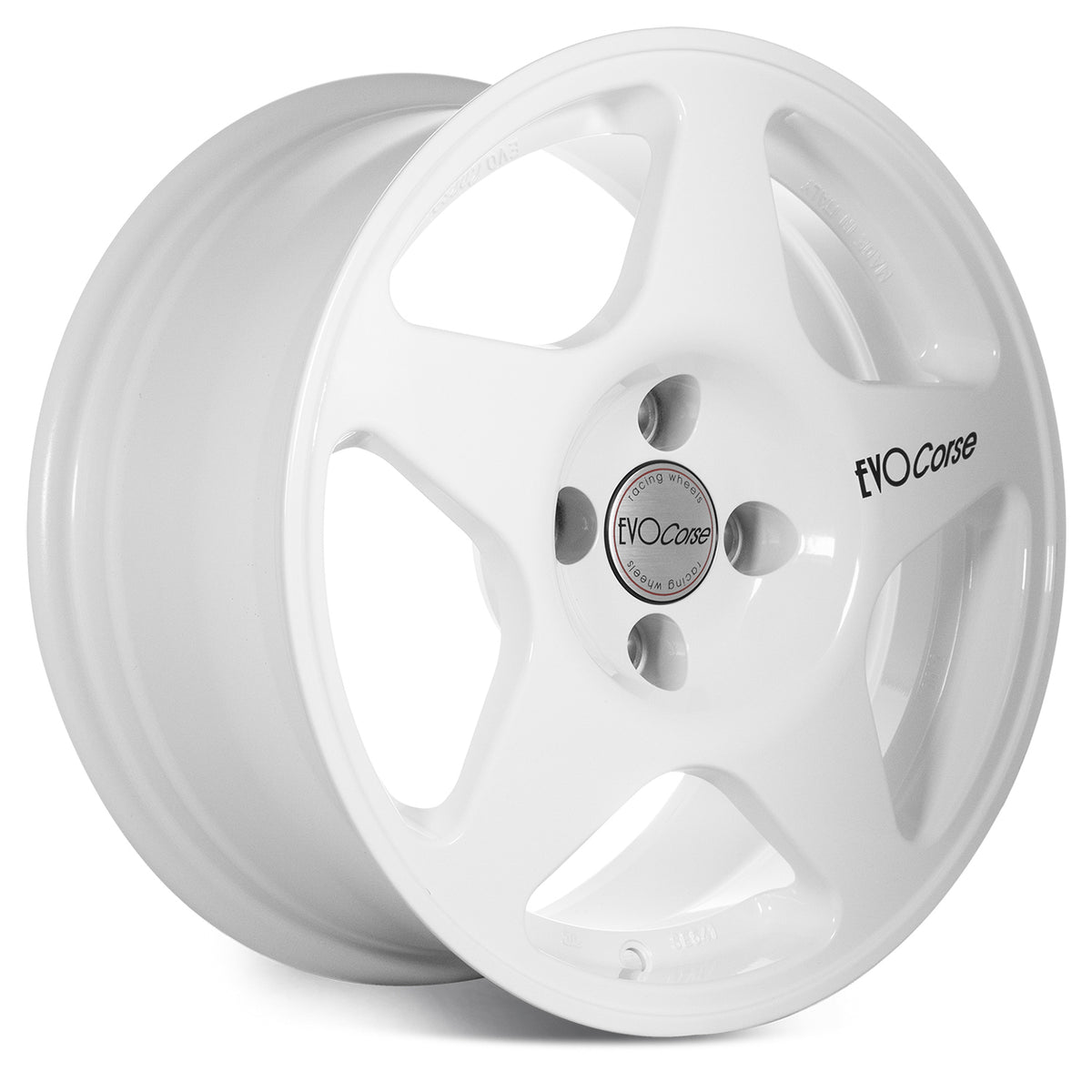

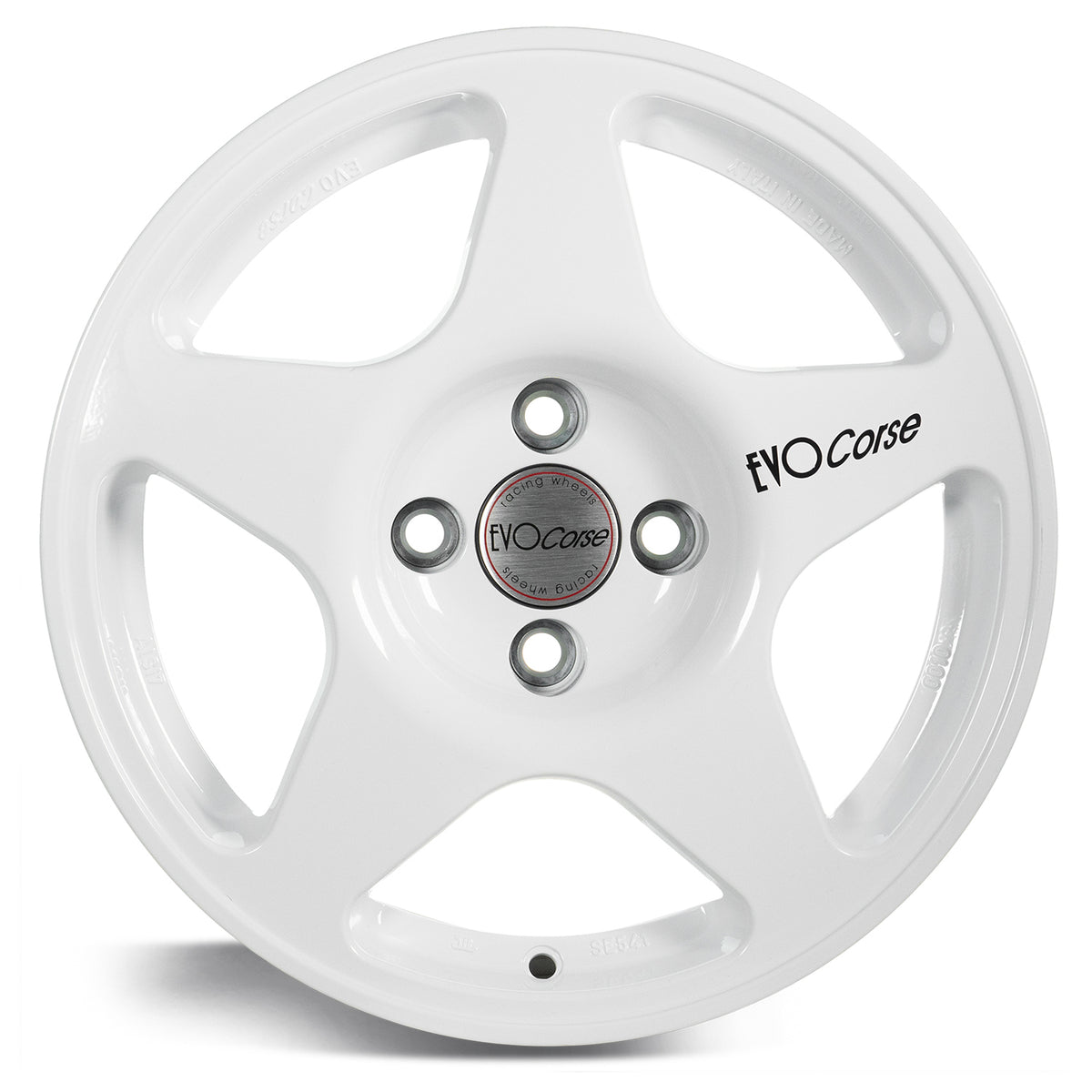

LION V39 is the EVO Corse 15″ alloy wheel inspired by a rally classic and reinterpreted through modern manufacturing technology. It is produced through low-pressure casting in primary A356-T6 aluminium alloy, using a process developed to combine low weight with structural strength.
Its historic design is paired with a racing geometry that contributes to vehicle handling, acceleration response and brake-temperature management. The internal profile is also designed to allow the installation of larger brake calipers.
Lightness and rally structure
LION V39 is available in a 7″ width and 15″ diameter, with a weight ranging from 7.1 to 7.9 kg depending on the configuration. A356-T6 aluminium alloy construction and low-pressure casting allow wheel sections to be controlled according to the intended use.
Steel inserts help ensure precise fastening. Reinforced rim edges increase barrel bending stiffness, while the profile is designed to reduce the risk of tyre debeading even at reduced inflation pressures.
Weight: 6.98 kg per wheel (varies slightly by fitment).
Size: 7J x 15". Choose your PCD, offset (ET) and centre bore, then your colour. Price is per wheel. Wheel nuts/bolts and centre caps are not included. Made in Italy by Evo Corse.
Barrel profile and brake-system clearance
The barrel profile of LION V39 is designed to contribute to the correct retention of the tyre bead, including at reduced inflation pressures.
The internal geometry provides the clearance needed for the installation of larger brake calipers. Actual compatibility must be verified according to the braking system, wheel size, ET and vehicle configuration.

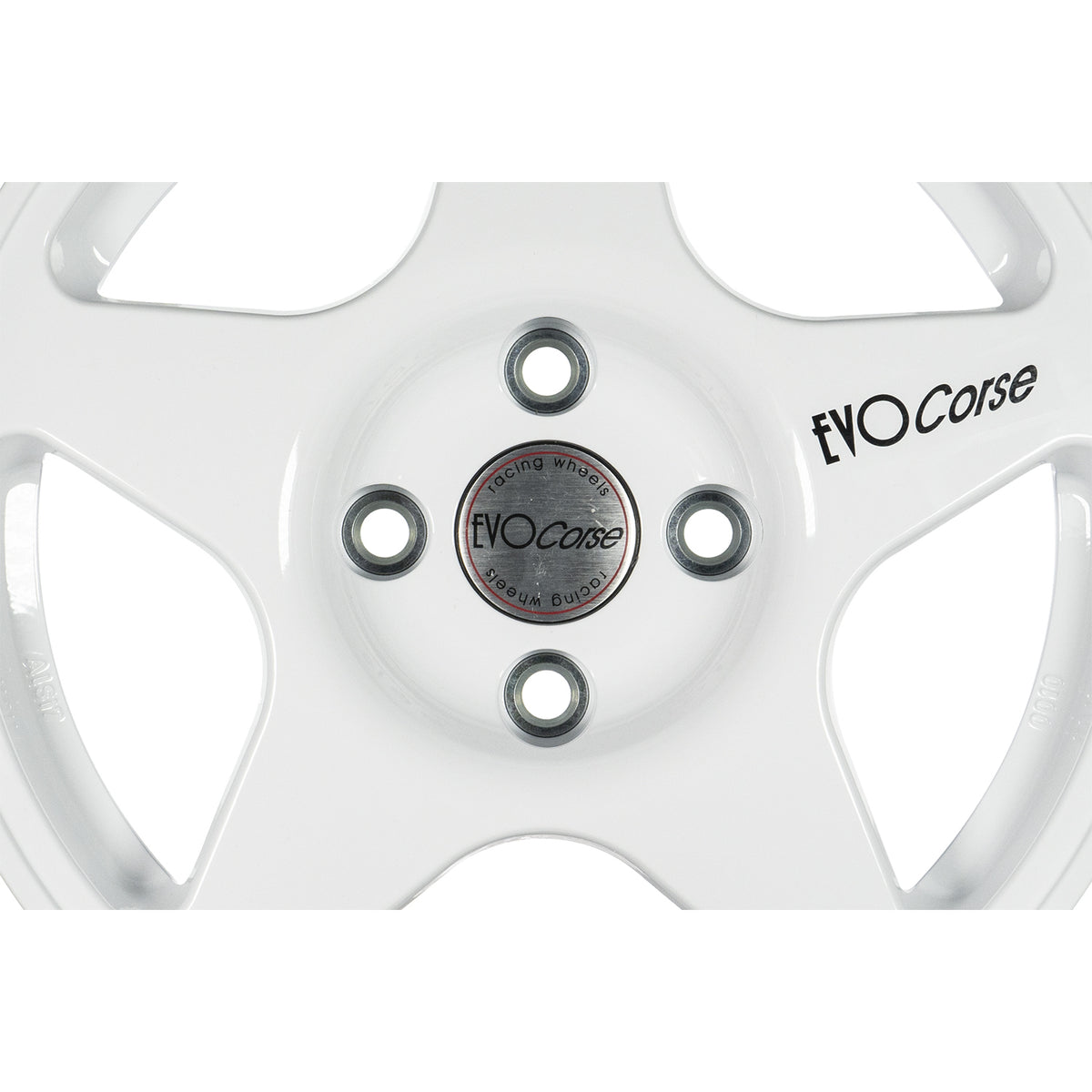

Steel inserts and fastening system
Steel inserts are included and available with 60° tapered or flat seats. The correct configuration must be defined according to PCD, ET, centre-bore diameter, fastening system, tyre and braking system.
Materials, finishes and configurations
LION V39 is made from A356-T6 aluminium alloy through low-pressure casting.
Available colours are white, silver, gold, anthracite, gloss bronze, matt bronze, gloss black and matt black.
Applications and compatibility check
LION V39 must be configured according to the specifications of each individual vehicle. Before ordering, it is necessary to verify the vehicle year and version, wheel size, PCD, ET, centre-bore diameter, fastening system, available brake clearance, tyre and applicable approval requirements.
The sizes, weights and configurations shown may vary according to the specific wheel specification.
Alfa Romeo: 145, 146, MiTo
Citroën: AX GTI, C2, C3, C3 Pluriel, DS3, Saxo
Dacia: Sandero / Stepway
Fiat: 131, 500, Barchetta, Brava / Bravo, Coupé, Punto, Ritmo, Tipo, Uno
Ford: Escort, Escort Cosworth, Sierra, Sierra RS Cosworth
Lancia: Delta, Ypsilon
Nissan: Micra, Note
Peugeot: 106, 205, 206, 207, 208, 305, 306, 308, 309, 106 GrN (Rally), 206 / CC, 206 Plus, 309 (Rally)
Renault: Clio, Clio GrN (Rally), Megane, R5 / R9 / R11 / R19, Twingo
Smart: Forfour, Fortwo
Subaru: Impreza, Impreza WRX/STi GrN (Rally)
Toyota: Celica, Corolla, MR2, Yaris
Volkswagen: Golf (Racing)
Available fitments
| PCD | Offset | Centre bore | Evo Corse code |
|---|---|---|---|
| 4x100 | ET25 | 57.1mm | SE5410040 |
| 4x100 | ET30 | 54.1mm | SE5410060 |
| 4x100 | ET38 | 60.1mm | SE5410010 |
| 4x108 | ET10 | 65.1mm | SE5410070 |
| 4x108 | ET16 | 65.1mm | SE5410020 |
| 4x108 | ET25 | 63.4mm | SE5410080 |
| 4x108 | ET26 | 65.1mm | SE5410030 |
| 4x98 | ET35 | 58.1mm | SE5410050 |
| 5x100 | ET41 | 56.1mm | SE5410120 |
Not sure which fitment suits your car? Contact us with your make, model and year and we'll confirm before you order.
