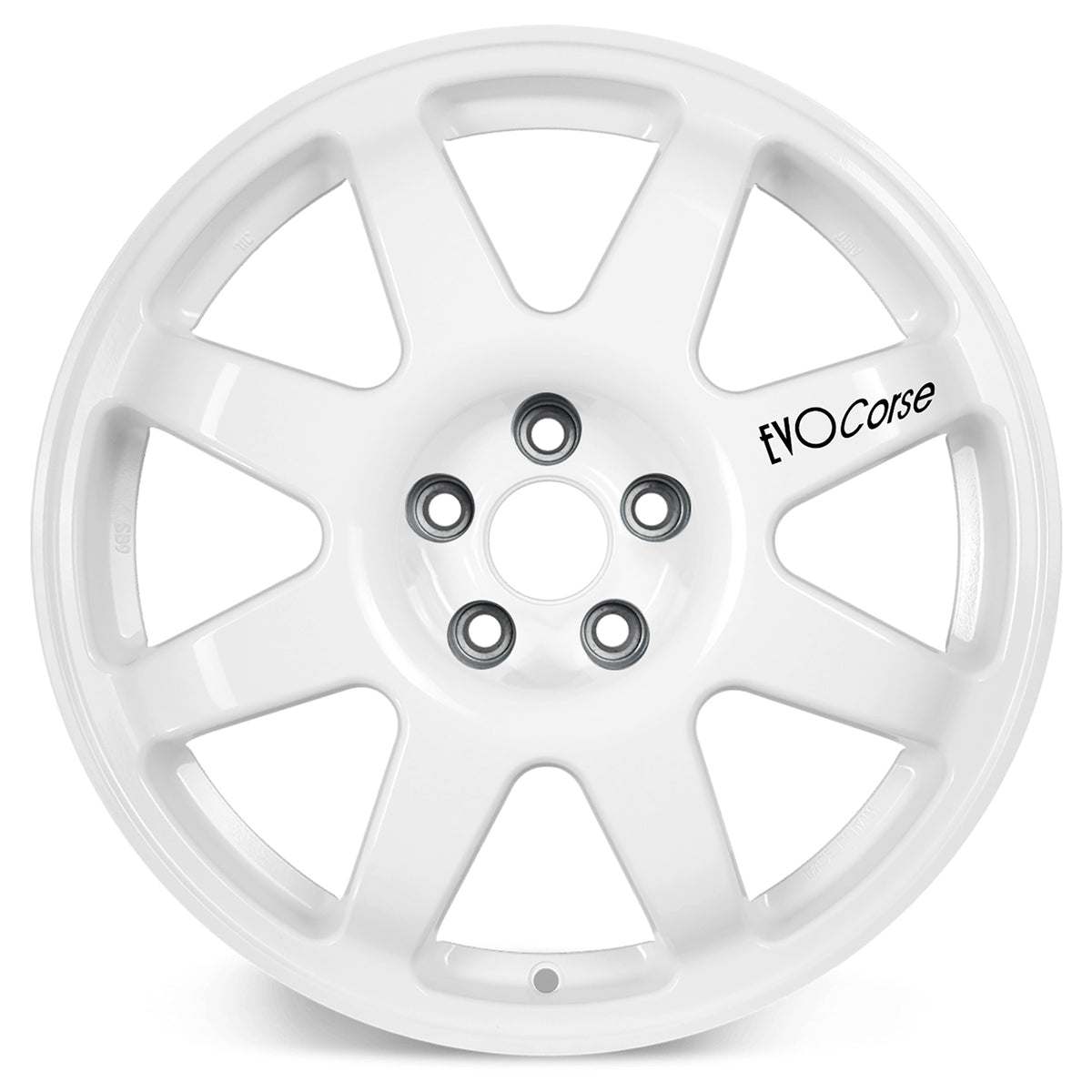

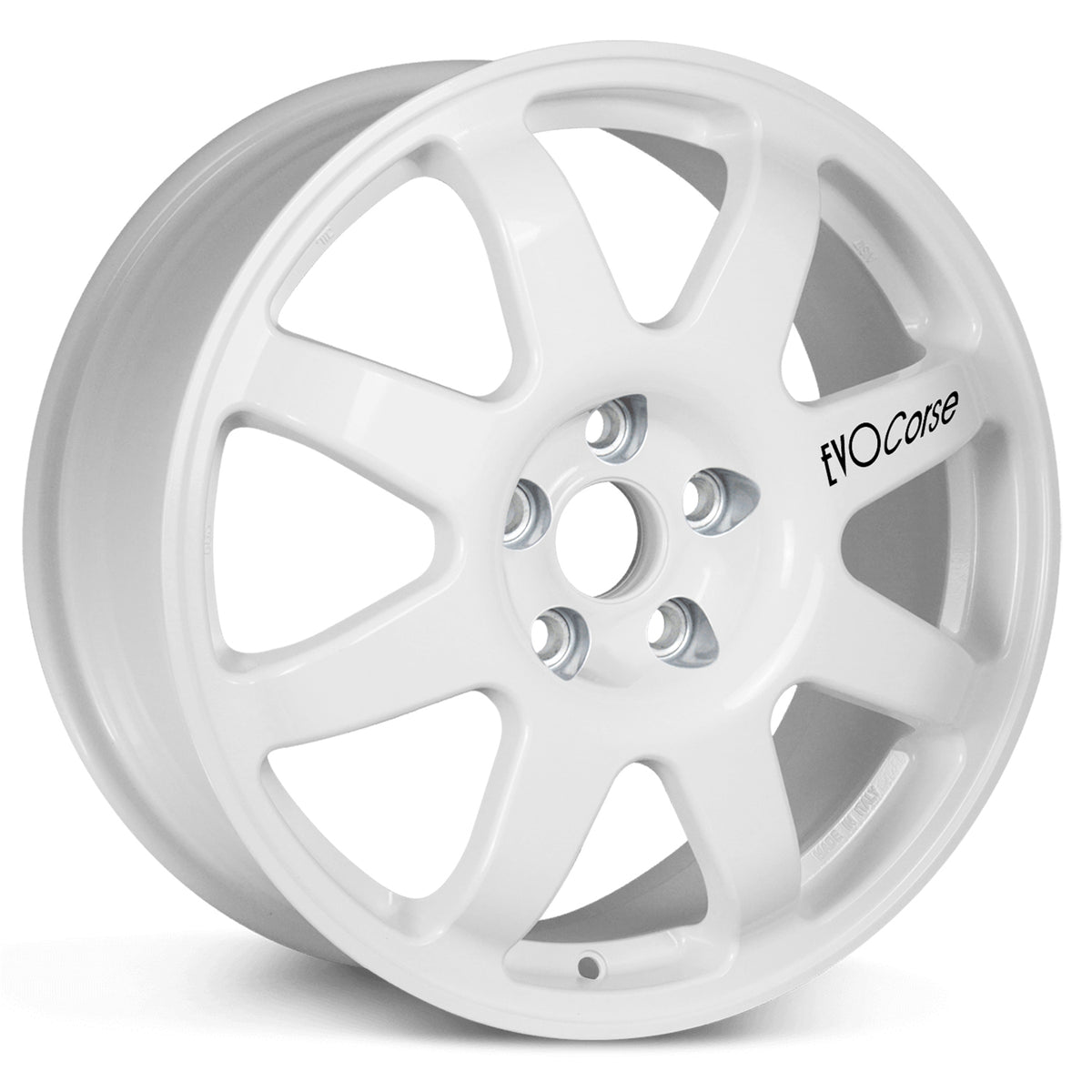

Evo Corse SB9 Ragno 17" Alloy Wheel - 7x17

SB9 Ragno is the 17-inch replica of the wheel designed for the Renault Clio Williams: a wheel with the distinctive “spider” design, created to bring back a rally icon using contemporary materials and production technologies.

Made in Italy, SB9 Ragno is produced by low-pressure casting in aluminium alloy and undergoes T6 heat treatment. The result is a lightweight, strong wheel suitable for both tarmac rallying and road use, for those looking to give their car a distinctive sporting appearance.

Weight: 10.32 kg per wheel (varies slightly by fitment).

Size: 7J x 17". Choose your PCD, offset (ET) and centre bore, then your colour. Price is per wheel. Wheel nuts/bolts and centre caps are not included. Made in Italy by Evo Corse.

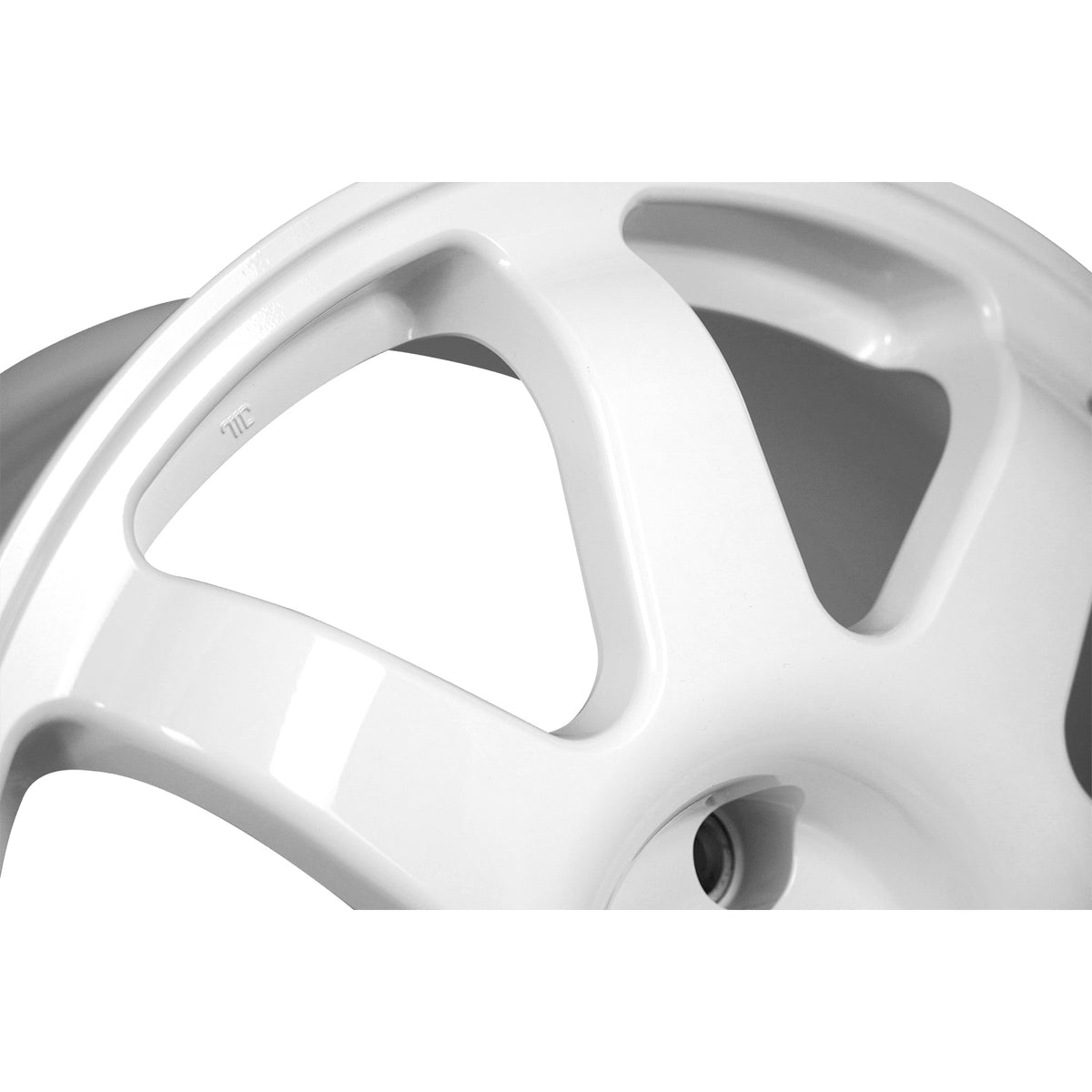

Profile and structure

The wheel has been engineered to combine the visual character of the original model with the requirements of contemporary use. Its A356-T6 aluminium-alloy structure provides a balance between low weight and resistance to the stresses associated with road and rally use.

Steel inserts and fastening

SB9 Ragno features steel inserts for the fastening seats, available with 60° or 90° tapered seats, or flat seats. This solution is designed to ensure reliable tightening and protect the areas subjected to the greatest stress during wheel installation.

Materials, finishes and configurations

• Material: Alloy Wheel A356-T6
• Manufacturing process: low-pressure casting and T6 heat treatment
• Use: tarmac rallying and road use
• Standard colours: White, Matt Black
• Available colors: Silver, Gold, Anthracite, Matt Bronze, Glossy Bronze, Glossy Black
• Steel inserts: 60° tapered, 90° tapered or flat, included

Applications and compatibility check

SB9 Ragno was created as a replica dedicated to the Renault Clio Williams and Group A configurations. Further applications may be available on request, subject to a technical check of the bolt pattern, offset, centre bore, brake clearance and the approval requirements applicable to the vehicle.

Available sizes, finishes and configurations may vary according to the application.

Audi: A3

Dacia: Sandero / Stepway

Fiat: Sedici

Ford: Escort, Escort Cosworth, Fiesta, Focus, Fusion, Puma, Sierra, Sierra RS Cosworth

Mazda: 2

Opel: Astra GrA

Peugeot: 106 KIT, 306 KIT / MAXI (Rally)

Renault: Clio, Clio GrA (Rally), Megane, R5 / R9 / R11 / R19, Twingo

Seat: Ibiza, Leon, Leon Cupra R

Skoda: Fabia

Subaru: Impreza STI GrN (Rally), Impreza WRX/STi GrN (Rally)

Suzuki: Swift Sport, SX4, Vitara

Toyota: Celica

Volkswagen: Golf, Polo

Available fitments

Not sure which fitment suits your car? Contact us with your make, model and year and we'll confirm before you order.
