Toyota GR Yaris Hubcentric Wheel Spacers 5x114.3 – 60.1mm to 73.1mm Centre Bore | 3mm 5mm 8mm

Toyota GR Yaris Hubcentric Wheel Spacers – 60.1mm to 73.1mm Centre Bore

Want to run aftermarket wheels like the WedsSport TC105X on your GR Yaris, but don't like the idea of a 13mm gap between the hub and the wheel? These spacers fix that. The GR Yaris uses a 5x114.3 PCD with a small 60.1mm centre bore. Most aftermarket 5x114.3 wheels are made with a 73.1mm bore so they fit a wide range of cars. Fit one of those wheels straight onto a Yaris hub and it isn't centred by the hub at all. It relies only on the wheel nuts, which can cause vibration at speed and puts extra load on the studs.

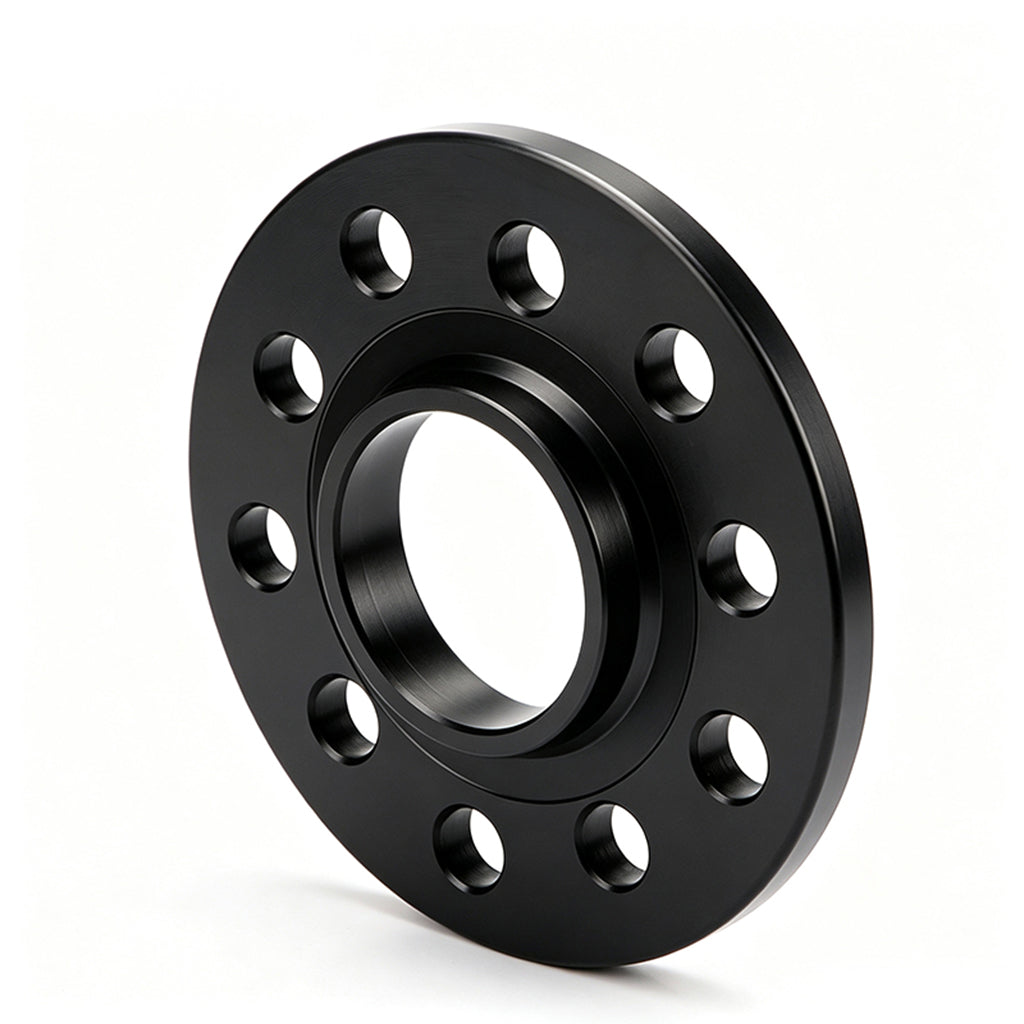

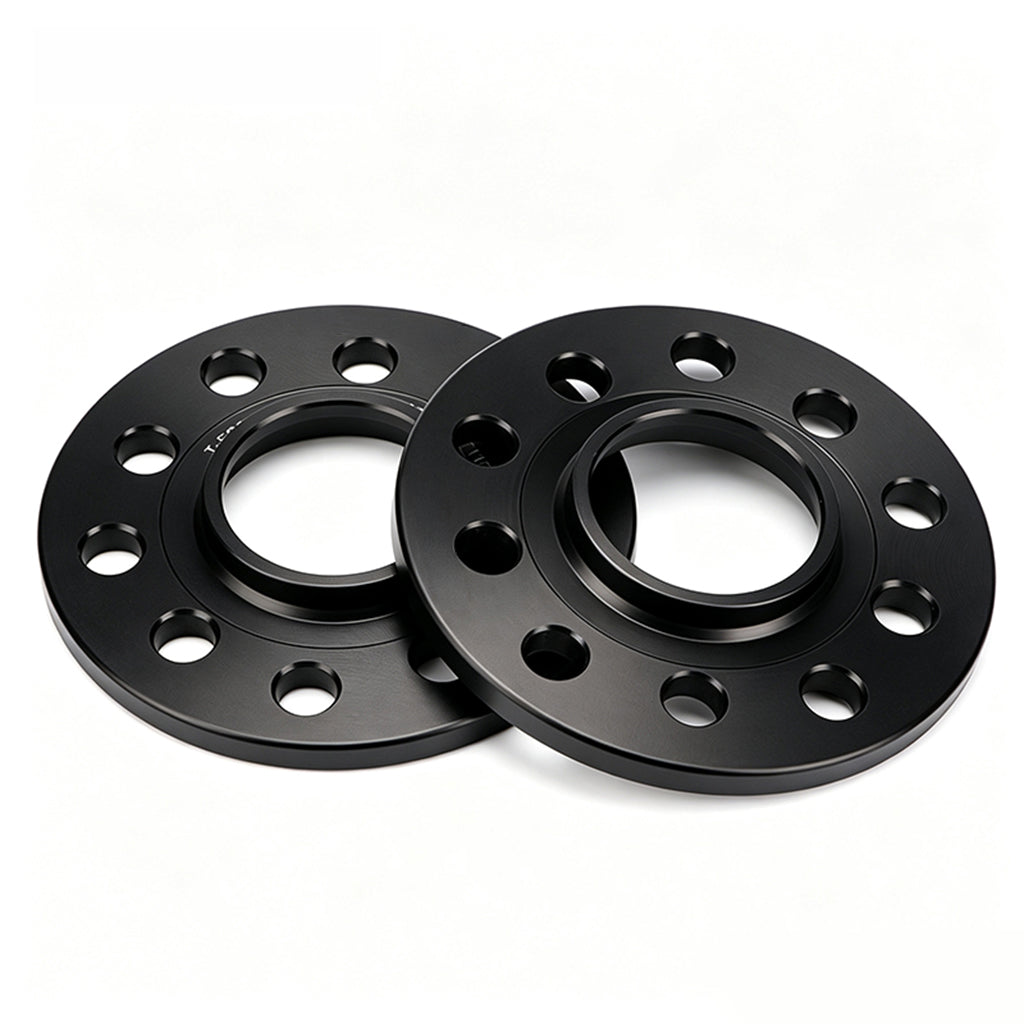

Hubcentric Wheel Spacers sit on the GR Yaris's 60.1mm hub and give your wheel a precisely machined 73.1mm hub spigot to locate on. The result is a true hubcentric fit with 73.1mm bore wheels. There are no plastic spigot rings to melt, seize or fall out.

The problem these spacers solve

• No hub location: A 73.1mm bore wheel on a 60.1mm hub is lug-centric only. It's harder to centre when fitting, and that often shows up as steering vibration.
• Unreliable spigot rings: Plastic rings can deform with brake heat, and cheap alloy rings can corrode and seize inside the wheel.
• The fix: One forged, one-piece spacer that matches the Yaris hub on one side and a 73.1mm bore wheel on the other.

Key features

• Converts the GR Yaris 60.1mm hub to a 73.1mm hubcentric spigot
• Forged 6061-T6 aluminium for high strength at low weight
• Fits both 5x114.3 and 5x108 hubs with a 60.1mm centre bore
• Available in 3mm, 5mm and 8mm to fine-tune fitment and clearance
• Smooth, vibration-free running with popular aftermarket wheels


Popular wheel fitments

Compatible with 5x114.3 wheels with a 73.1mm centre bore, including the WedsSport TC105X, a favourite with GR Yaris owners, and many other aftermarket forged and flow-formed wheels.

Specifications

• Hub bore: 60.1mm
• Wheel spigot: 73.1mm
• PCD: 5x114.3 / 5x108
• Material: Forged 6061-T6 aluminium
• Thicknesses: 3mm / 5mm / 8mm
• Supplied: In pairs

Vehicle compatibility

Toyota GR Yaris Gen 1 (2020–2024) and Gen 2 (2024–present). Also suitable for other vehicles with a 5x114.3 or 5x108 PCD and a 60.1mm centre bore.

FAQ

Do I need these to run a WedsSport TC105X on my GR Yaris?
The TC105X and most aftermarket 5x114.3 wheels have a 73.1mm bore, larger than the Yaris's 60.1mm hub. These spacers restore proper hubcentric location without relying on spigot rings.

Do I need longer wheel studs?
Yes, these require longer wheel studs to fit. We sell these for the GR Yaris here.

Can I use these with my standard GR Yaris wheels?
These spacers are designed for 73.1mm bore aftermarket wheels. For a wider stance on OEM wheels, see our STG 21.5mm Bolt-on Spacers.

Got a fitment question? Get in touch. We know this car inside out.
